Name: General One Piece Automatic Solder Wire Feeder For TIG Welding Procedure
Brand: Chengdu Xiofitec Co., Ltd.
SKU: XioFiTec/Hanyan
Price: 100 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Machine Type: Welding Robot

Place Of Origin: Sichuan, China

Brand Name: Hanyan Technology

Warranty: 1 Year

Weight (kg): 15

Voltage: Single Phase AC 220V 50Hz

Current: Depends

Rated Capacity: Depends

Rated Duty Cycle: 100%

Dimensions: 410x400x400mm

Usage: Feed Soldering Wire

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Application: TIG Welding Process

Warranty: 12 Months

Type: Other

Weight: 23kg

Applicable Industries: Manufacturing Plant

Showroom Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Bearing, Gearbox, Motor, Gear

Key Selling Points: Automatic

Port: Shanghai

Highlight:

One Piece Automatic Solder Wire Feeder

TIG Automatic Solder Wire Feeder

Basic Infomation

Brand Name: XioFiTec/Hanyan

Certification: CE ISO9001

Model Number: XioFiTec/Hanyan

Payment & Shipping Terms

Packaging Details: Wooden Box

Supply Ability: 10 Set/Sets per Month

Gallery

General One Piece Automatic Solder Wire Feeder For TIG Welding Procedure

Product Description

Application:

It’s applicable to thicker, wider workpiece. The wire feeding speed regulation circuit in the system adopted pulse-width modulation (PWM) technology, Functions of inching wire feeding and remote control wire feeding to achieve better low speed stability and wider speed adjustable range. It has the advantages of anti-interference, high reliability, easy to use, high automation etc.

Components:

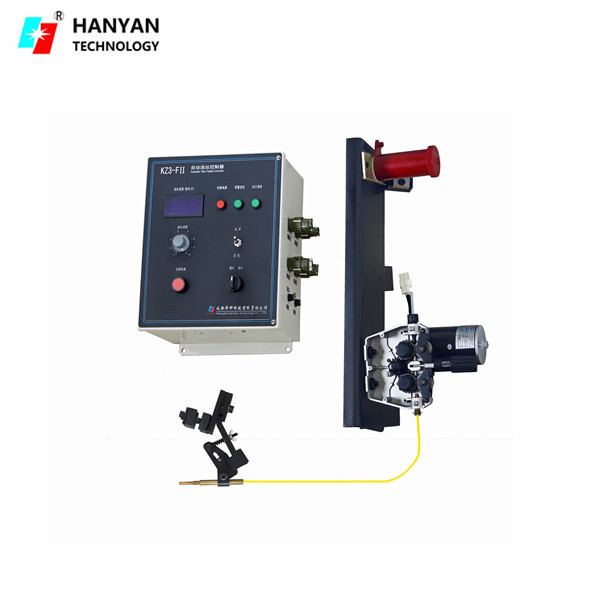

WF-1 is made up of DC printed motor, wire feeding device, motor control board, control transformer, output relay, spin button, input/output interface, wire feeding tube, wire reel bracket etc. And it bases on portable structure, has good mobility and easy installation.

Welding Process:

WF-1 is a kind of universal auxiliary welding equipment. It can be used on all kinds of TIG/PAW or our HF series welding lathes.

Technical Parameters

Model	WF-1
Wire feeding speed	200-2200mm/min (continuously adjustable)
Power supply	Single phase 50Hz AC 220V
Rated input capacity	100VA
Wire diameter	φ0.8/1.0/1.2/1.6mm (optional)
Wire reel dimension	ID: φ50 mm; OD: φ<435 mm
Dimension(LWH)	260mm×270mm×350 mm
Weight(without wire reel)	15Kg

General One Piece Automatic Solder Wire Feeder For TIG Welding Procedure 0

Visit

In user factory:

1. Before sales: on site techinical solution and quotation.

2. after sales: installation, commisionning, training.

General One Piece Automatic Solder Wire Feeder For TIG Welding Procedure 1

In our factory:

General One Piece Automatic Solder Wire Feeder For TIG Welding Procedure 2
