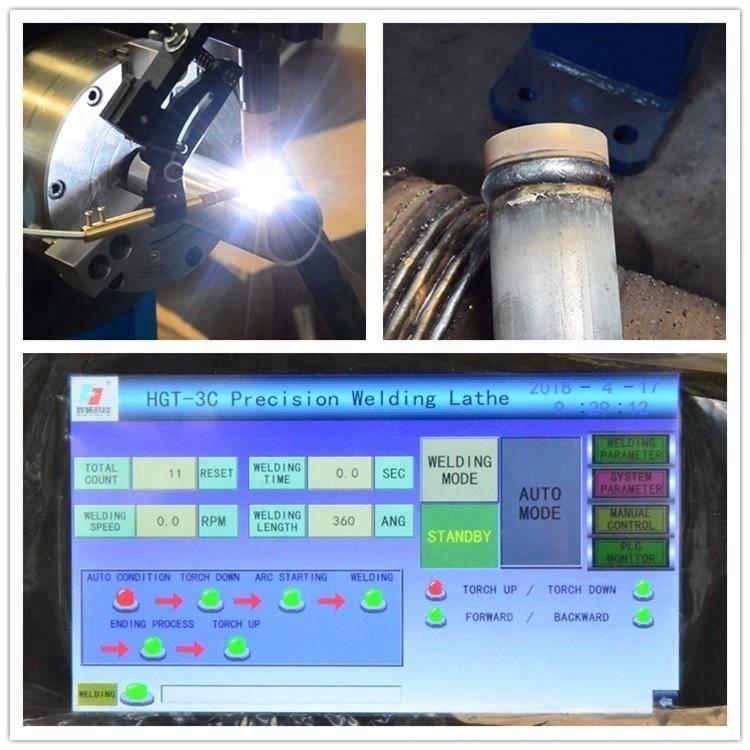

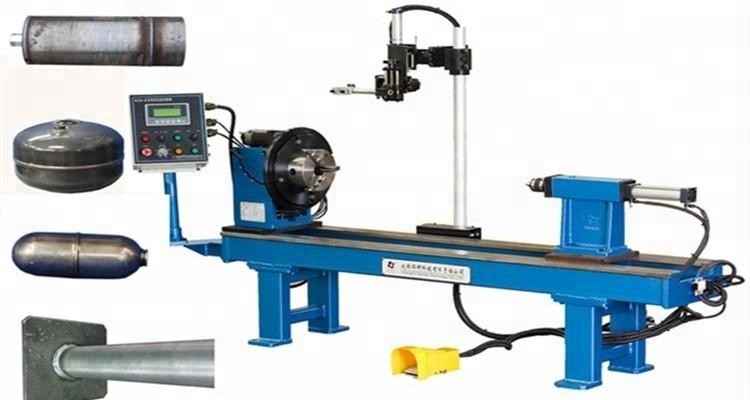

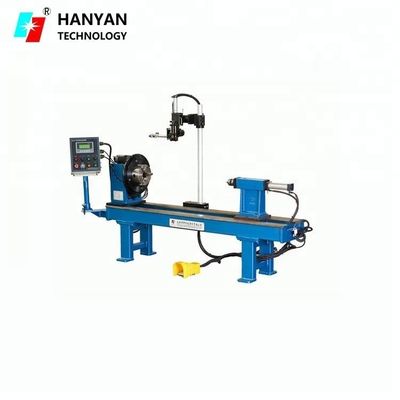

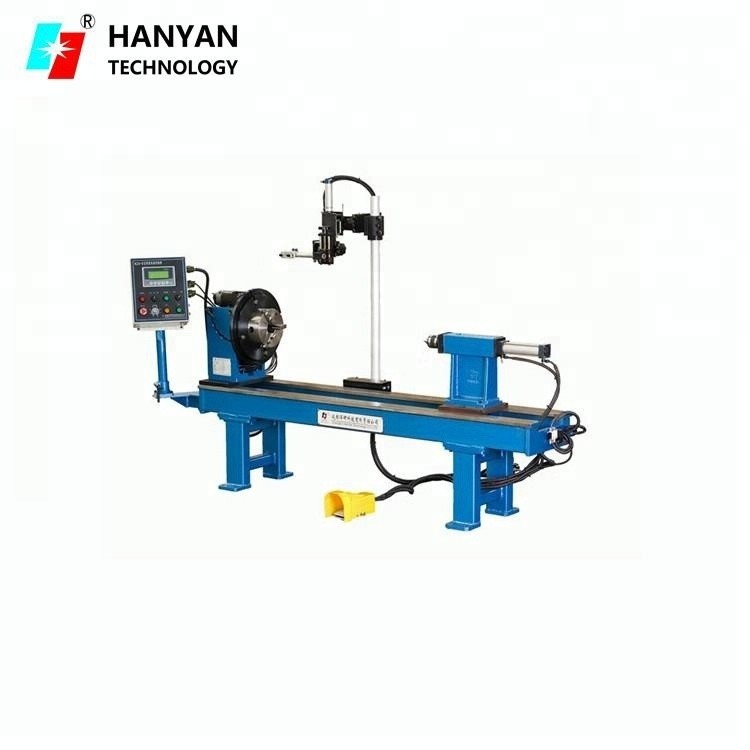

HF-300W Horizontal circumferential seam welder
Features:
1.3 jaw chuck: arranged on headstock for more different workpiece.
2.Tiltable headstock: 0 °,30 °,45 °,60 °,90 °,to meet more welding requirements (center can be used only 0 ° ).
3.Center: complete load/unload and fixing quickly,reduce readiness time and welding time,improve efficiency.
4.Rotary headstock: driven by DC gear motor, stepless speed regulation, welding current detection switch.
5.Torch: 3D adjustment mechanism and pneumatic lifting device.

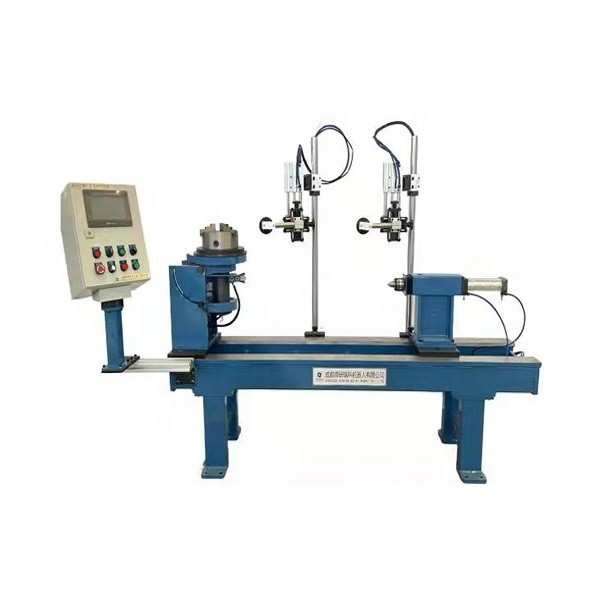

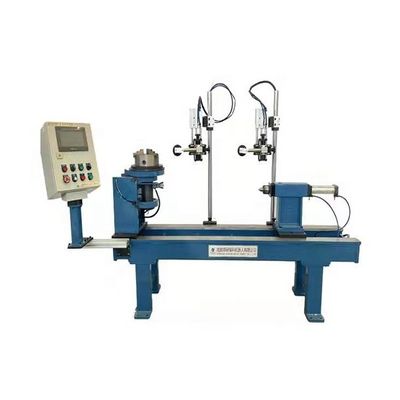

Options:double torch welding,bracket,protection door and so on.
Main technical parameters:
Control power supply: single phase 50Hz AC 220V
Welding power supply: three phase 50Hz AC 380V
Workpiece's thickness: depends on sharp of opening
Workpiece's diameter: 10mm-1200mm
Efficient welding length: ≤500mm
Rotating speed of headstock: 1-10/min 1-10rpm
Rotating diameter of workpiece: ≤350mm
Spindle diameter: ≤30mm
Workpiece's weight: ≤30kg
Stroke of torch: 100mm
Angle of headstock: 0 °,30 °,45 °,60 °,90 °
3D adjustment range of torch: X: ±30mm,Y: ±50mm,Z: ±30mm
Max.welding current:500A
Company Information
Chengdu Hanyan technology Co.,Ltd. is a high-tech enterprise which is involved in researching and developing,designing, manufacturing and service of welding equipment.
Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.
We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.
Our managment system & Certification
After-sale service
Guarantee and After-sale service
One year guarantee for whole machine
24 hours technical support by e-mail
Calling or door to door service
Engineers available to service machinery overseas
